Frying Solution

Banana and Plantain Chips Frying Solution

A 50-500 kg/h banana and plantain chips solution combining product preparation, adjustable slicing, continuous frying, de-oiling, seasoning and packing.

Typical capacity: 50-500 kg/h; custom configurations available Electric or gas, selected for the project

Get a Solution Talk to an Engineer

PRODUCT INTRODUCTION

Frying Solution for Banana and Plantain Chips Production

The SHEPODY banana and plantain chips solution is built around the raw fruit, maturity, slice style and target texture. Green bananas and plantains are commonly selected for crisp chips, while peeling and preparation are arranged according to sap, labor and automation requirements.

A typical capacity range is 50-500 kg/h. The standard industrial route connects adjustable slicing, continuous frying, vibrating de-oiling, drum seasoning and packing. Raw-material feeding, oil filtration and liquid or powder seasoning can be added when required.

Recommended line configuration

Sorting, peeling and preparation stations
Adjustable banana or plantain slicing
Metered feeding and continuous frying
Vibrating surface-oil removal
Powder or liquid drum seasoning
Cooling and automatic packing connection

Final capacity and frying settings depend on variety, maturity, moisture, slice thickness and the required finished color and crispness.

Typical capacity range: 50-500 kg/h
Adjustable slicing and frying residence time
Optional feeding, seasoning spraying and oil filtration

Banana and Plantain Chips frying solution

PROCESSING CHALLENGES

Common Challenges in Banana and Plantain Chips Frying

Each challenge is addressed through process design, stable temperature control, oil management and gentle product handling.

Consistent Slice Thickness

Adjustable slicing is matched to fruit firmness and the required chip style.

Variable Raw Moisture

Maturity and moisture affect frying time, output and finished texture.

Color Control

Feeding, oil temperature and residence time are coordinated to limit uneven browning.

Gentle Product Transfer

Matched conveyors and vibrating de-oiling help reduce breakage after frying.

Uniform Seasoning

Drum angle, rotation and dosing method are selected for powder or liquid flavoring.

Residue Management

Optional screening and oil filtration are selected from fines load and production schedule.

RECOMMENDED PROCESS

Typical Banana and Plantain Chips Frying Process

Each process stage is matched with equipment sized to your required capacity and final product standard.

Sorting

Peeling & Preparation

Adjustable Slicing

Metered Feeding

Continuous Frying

Vibrating De-oiling

Drum Seasoning

Cooling

Packing

CAPACITY OPTIONS

Choose a Starting Capacity Range

The listed options support initial selection. Capacity, line layout and automation can be customized around your product, required finished output and factory conditions.

50-500kg/h

Typical capacity range. Final finished output depends on raw fruit, slice thickness and recipe.

CustomProject-engineered capacity

Configured around your product, target finished output, process time, utilities and available factory space.

LINE & PROCESS GALLERY

Banana and Plantain Chips Equipment and Application Views

Representative equipment, process and available project images. The final line arrangement is engineered around your product, output target, utilities and available floor space.

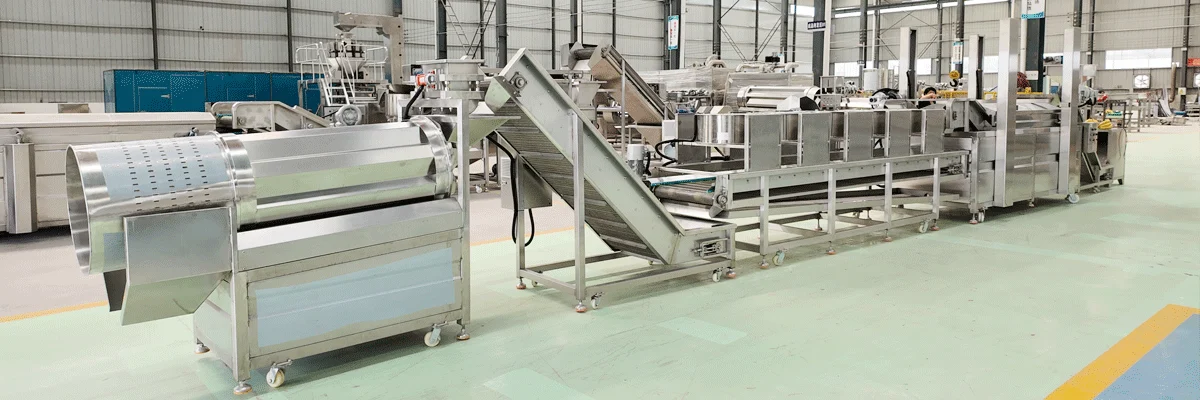

Banana chips frying and seasoning line assembled in the factory workshop — Banana Chips Line in Workshop

Finished fried plantain chip samples — Finished Plantain Chips

RECOMMENDED EQUIPMENT

Core Equipment for This Solution

The final equipment configuration is confirmed according to your product, capacity, utilities and plant layout.

Banana Chips Frying Line

A compact banana and plantain chips line combining adjustable slicing, continuous frying, de-oiling and even drum seasoning.

Learn More

Continuous Fryer with Vacuum Oil Filter

A PLC-controlled double-mesh continuous fryer paired with online residue screening, vacuum filtration, oil storage and circulation.

Learn More

Vibrating Deoiling Machine

A continuous vibrating conveyor that drains excess surface oil from fragile fried products with minimal handling damage.

Learn More

Automatic Seasoning Drum

An automatic stainless steel drum seasoner for uniformly coating fried snacks, nuts and chips with powder or liquid flavor before packing.

Learn More

KEY FRYING PARAMETERS

Reference Parameters for Banana and Plantain Chips

Final working values are tuned during project design and commissioning according to your raw material and target product.

Capacity	Typical range: 50-500 kg/h
final output project-confirmed
Process Scope	Preparation, slicing, feeding, continuous frying, de-oiling, seasoning, cooling and packing
Slice Setting	Adjustable and confirmed from fruit and product trials
Material	SUS304 food-contact construction
Heating Method	Electric or gas, selected for local utilities
Optional Modules	Automatic feeding, seasoning sprayer, oil filtration and automatic packing

FAQ

Banana and Plantain Chips Frying Solution FAQ

Answers to common questions about process configuration, capacity and operation.

The typical capacity range is 50-500 kg/h. Final finished output depends on variety, maturity, moisture, slice thickness and frying recipe.

Yes. The process can be configured for green banana, plantain and related dense-flesh products after reviewing peeling, slicing and recipe requirements.

Peeling arrangements depend on variety, maturity, sap and local labor. Manual or assisted preparation stations can be integrated with automatic downstream equipment.

Yes. Powder dosing, liquid spraying or a combined seasoning arrangement can be selected for the product.

Please provide the banana or plantain variety, maturity, target output, slice thickness, flavoring method, utilities and workshop dimensions.
