Potato Chips Frying Solution, 50-500 kg/h

PRODUCT INTRODUCTION

Frying Solution for Potato Chips Production

The SHEPODY potato chips frying solution is a modular process for turning fresh potatoes into consistently fried and seasoned chips. It connects raw-material preparation with controlled continuous frying, surface-oil removal, seasoning and packing transfer.

Reference finished output is 50-500 kg/h. The final equipment list is selected around potato condition, slice style and thickness, target color and texture, available energy, automation level and factory layout.

Recommended line configuration

Potato washing, peeling and inspection
Precision slicing for flat or wavy chips
Blanching and surface moisture removal
Continuous frying with coordinated temperature and belt-speed control
Vibrating de-oiling and drum seasoning
Automatic weighing and packing connection

Oil filtration, inspection, sorting and automatic packing modules can be added when required. Final power, dimensions and utility consumption are confirmed in the project proposal.

50-500 kg/h configurable finished-chip output
PLC-coordinated preparation, frying and finishing
SUS304 food-contact construction with modular expansion

PROCESSING CHALLENGES

Common Challenges in Potato Chips Frying

Each challenge is addressed through process design, stable temperature control, oil management and gentle product handling.

Consistent Color

Coordinated temperature and belt-speed control helps maintain repeatable frying conditions.

Uniform Slice Processing

Precision slicing, blanching and dewatering support even frying across the product bed.

Controlled Surface Oil

Vibrating de-oiling removes excess oil immediately after fryer discharge.

Stable Frying Conditions

PLC control coordinates oil temperature and conveyor residence time for each recipe.

Gentle Product Handling

Matched conveyors and vibrating de-oiling help limit chip breakage between stages.

Oil Quality Management

Continuous filtration removes crumbs and fines to support cleaner circulating oil.

RECOMMENDED PROCESS

Typical Potato Chips Frying Process

Each process stage is matched with equipment sized to your required capacity and final product standard.

Washing & Peeling

Inspection

Slicing

Blanching

Dewatering

Continuous Frying

Vibrating De-oiling

Drum Seasoning

Packing

CAPACITY OPTIONS

Choose a Starting Capacity Range

The listed options support initial selection. Capacity, line layout and automation can be customized around your product, required finished output and factory conditions.

50-500kg/h

Reference finished-chip output range. Final capacity depends on raw potato, slice thickness and frying recipe.

CustomProject-engineered capacity

Configured around your product, target finished output, process time, utilities and available factory space.

LINE & PROCESS GALLERY

Potato Chips Equipment and Application Views

Representative equipment, process and available project images. The final line arrangement is engineered around your product, output target, utilities and available floor space.

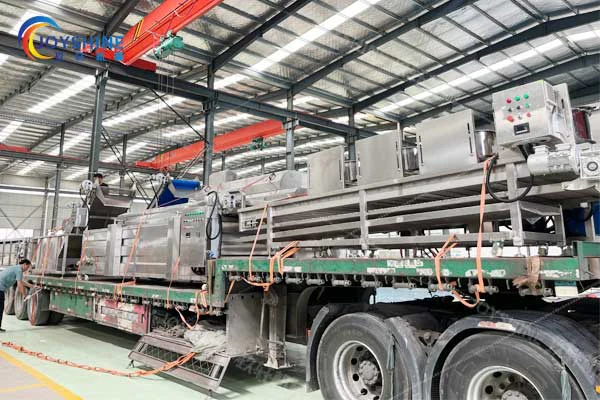

Industrial potato chips frying line equipment prepared in the workshop — Potato Chips Line Project Equipment

Workshop view of potato chips production line equipment — Potato Chips Line Workshop View

Stainless steel potato chips frying line equipment detail — Potato Chips Frying Equipment Detail

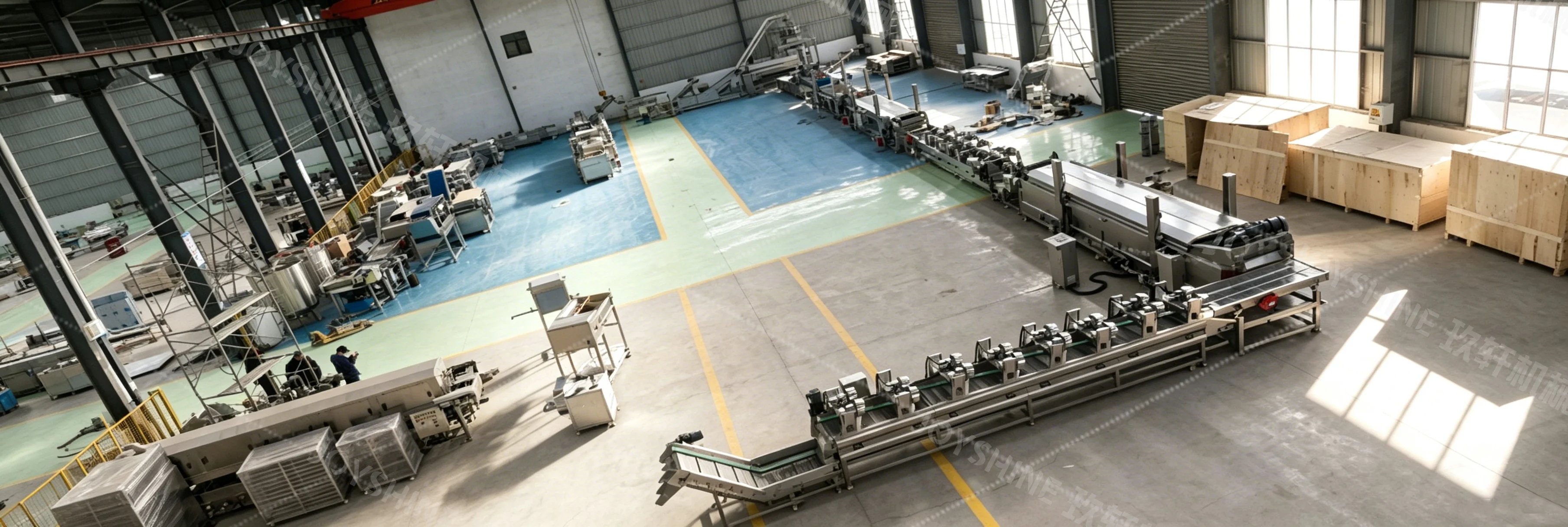

Automatic potato chips production line assembled in the factory workshop — Automatic Potato Chips Line in Workshop

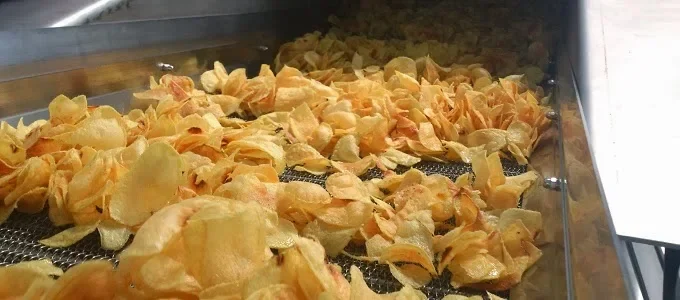

Potato chips moving through industrial frying equipment — Potato Chips Frying Test

RECOMMENDED EQUIPMENT

Core Equipment for This Solution

The final equipment configuration is confirmed according to your product, capacity, utilities and plant layout.

Continuous Potato Chips Frying Line

A project-engineered potato chips line integrating preparation, continuous frying, de-oiling, seasoning and packing around the required product, output and workshop conditions.

Learn More

Continuous Frying Oil Filtration System

A project-matched oil management skid that removes frying residue and returns filtered oil to batch or continuous fryers.

Learn More

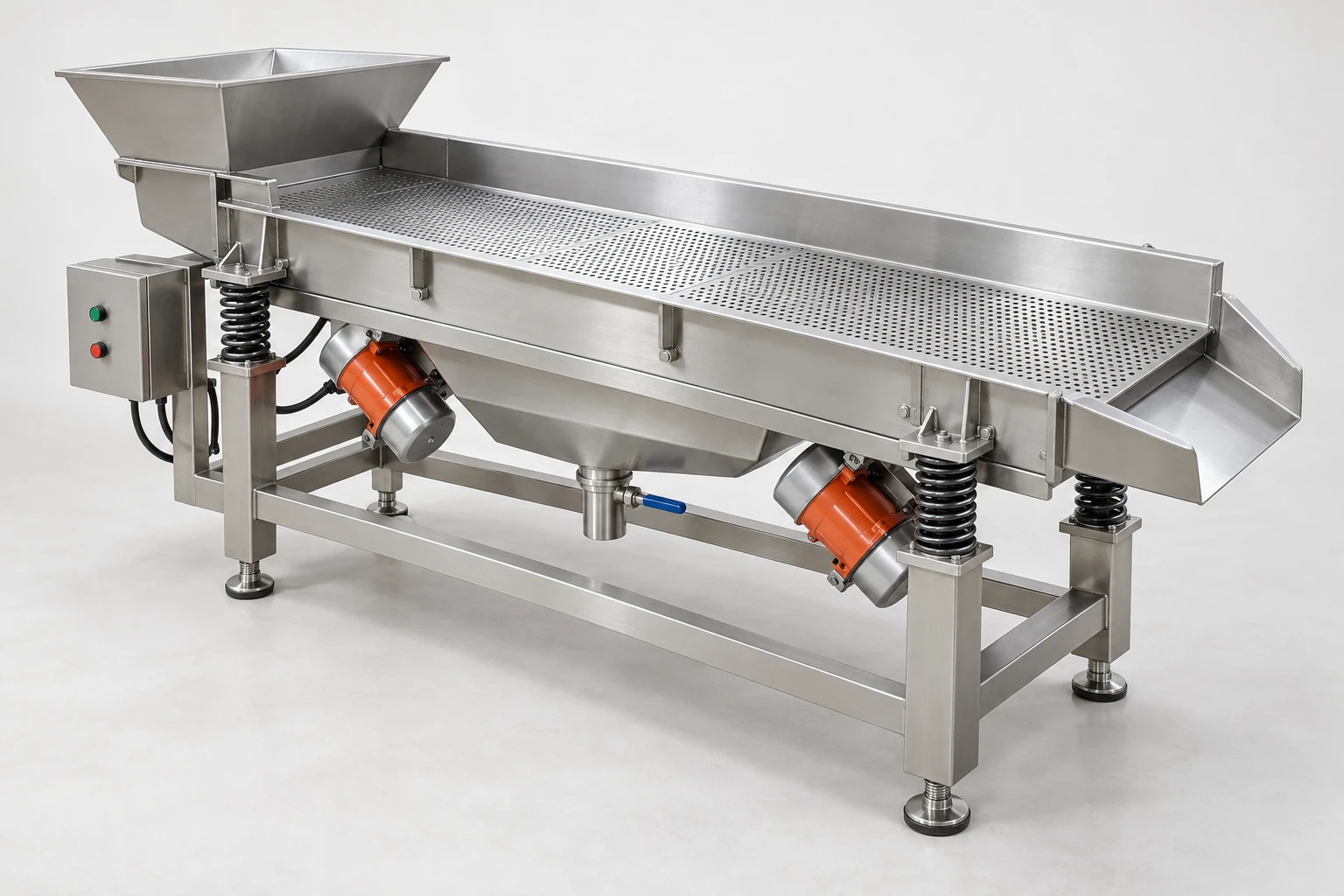

Vibrating Deoiling Machine

A continuous vibrating conveyor that drains excess surface oil from fragile fried products with minimal handling damage.

Learn More

Automatic Seasoning Drum

An automatic stainless steel drum seasoner for uniformly coating fried snacks, nuts and chips with powder or liquid flavor before packing.

Learn More

RELATED PROJECTS

Projects Using This Process

Review available project records connected to this solution. Each capacity and configuration applies to that specific delivery.

BoliviaPotato Chips150 kg/h finished chips

Bolivia 150 kg/h Potato Chips Production Line

A Bolivian snack manufacturer selected a customized 150 kg/h automatic potato chips line, factory-tested and shipped with remote installation and training support.

View Project

KEY FRYING PARAMETERS

Reference Parameters for Potato Chips

Final working values are tuned during project design and commissioning according to your raw material and target product.

Capacity	50-500 kg/h finished chips, customizable
Process Scope	Washing and peeling, inspection, slicing, blanching, dewatering, continuous frying, de-oiling, seasoning and packing connection
Heating Method	Electric or gas, selected for local utilities
Control System	PLC touch screen with coordinated line control
Food-contact Material	SUS304 stainless steel
Electrical Supply	380V / 50Hz / 3 Phase, customizable

FAQ

Potato Chips Frying Solution FAQ

Answers to common questions about process configuration, capacity and operation.

The reference finished-chip output is 50-500 kg/h. Final capacity depends on raw potato condition, slice thickness and frying recipe.

A typical line includes washing and peeling, inspection, slicing, blanching, dewatering, continuous frying, vibrating de-oiling, drum seasoning and packing connection.

Yes. Electric or gas heating can be selected according to local utilities and the project configuration.

With process and equipment adjustments, the line can also be configured for sweet potato, cassava, taro or plantain chips.

Please provide the raw material, target finished output, slice style and thickness, voltage or fuel conditions, available floor space and required automation level.

PROJECT ENQUIRY

Plan Your Frying Line

Share your raw material, target output, available space and utilities. Our engineers will configure the process and equipment for your project.

Selected solution Potato Chips Frying Solution

Recommended equipment or line configuration
Capacity, utility and layout recommendations
Quotation basis and next steps
