Frying Solution

Industrial Vegetable Frying Solution

A project-engineered continuous frying solution for prepared vegetables, root slices, tempura products and plant-based foods, with product-specific preparation and cooling.

Typical automatic-line capacity: 300-1000 kg/h; final output depends on the vegetable and recipe Electric, gas or diesel, selected for product and plant utilities

Get a Solution Talk to an Engineer

PRODUCT INTRODUCTION

Frying Solution for Vegetables and Plant-Based Foods Production

The SHEPODY vegetable frying solution is configured around raw-material moisture, cut shape, coating, product fragility and target texture. Washing, cutting, blanching, coating and dewatering are selected separately for each vegetable before the frying and finishing sections are sized.

For initial selection, a typical automatic-line range is 300-1000 kg/h for snack, meat and vegetable products. Actual output is confirmed for each vegetable. An Armenia project used a customized 6 m continuous frying line for fried eggplant, which demonstrates the project-specific approach rather than a universal model.

Recommended process scope

Inspection, washing and product-specific cutting
Blanching, coating or dewatering when required
Metered feeding and double-mesh continuous frying
Vibrating de-oiling and air cooling
Inspection, seasoning and packing connection

Final output, residence time, belt selection, heating duty and oil filtration are confirmed after product and process review.

Preparation stages selected for each vegetable
Double-mesh continuous frying with adjustable residence time
Cooling, inspection and seasoning integrated by project

Vegetables and Plant-Based Foods frying solution

PROCESSING CHALLENGES

Common Challenges in Vegetables and Plant-Based Foods Frying

Each challenge is addressed through process design, stable temperature control, oil management and gentle product handling.

Variable Moisture

Moisture differs widely across vegetables and directly affects heating load and residence time.

Product Shape

Slices, whole pieces, coated products and plant-based items require different belts and handling.

Pretreatment Selection

Blanching, coating and dewatering are applied only when the recipe requires them.

Temperature Recovery

Heating duty and feeding rate are coordinated to manage high-moisture product loads.

Fragile Product Handling

Transfer heights, mesh and vibration are selected to limit breakage.

Cooling and Texture

Airflow and residence time are matched to the required texture and packing temperature.

RECOMMENDED PROCESS

Typical Vegetables and Plant-Based Foods Frying Process

Each process stage is matched with equipment sized to your required capacity and final product standard.

Raw Material Inspection

Washing

Cutting or Coating

Blanching When Required

Dewatering

Metered Feeding

Continuous Frying

De-oiling

Air Cooling

Inspection

Seasoning

Packing

CAPACITY OPTIONS

Choose a Starting Capacity Range

The listed options support initial selection. Capacity, line layout and automation can be customized around your product, required finished output and factory conditions.

300-1000kg/h

Typical automatic-line range. Actual vegetable output requires product review.

CustomProject-engineered capacity

Configured around your product, target finished output, process time, utilities and available factory space.

LINE & PROCESS GALLERY

Vegetables and Plant-Based Foods Equipment and Application Views

Representative equipment, process and available project images. The final line arrangement is engineered around your product, output target, utilities and available floor space.

Industrial continuous frying line configured for eggplant products — Eggplant Frying Line

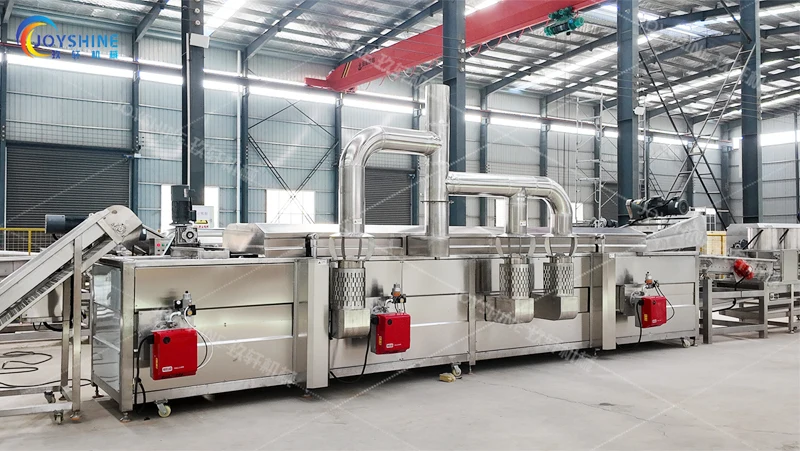

Continuous vegetable frying equipment for eggplant processing — Vegetable Frying Equipment

RECOMMENDED EQUIPMENT

Core Equipment for This Solution

The final equipment configuration is confirmed according to your product, capacity, utilities and plant layout.

Industrial Vegetable Frying Line

A configurable continuous line for prepared vegetables, root slices and plant-based products, from metered feeding through frying, cooling and seasoning.

Learn More

Continuous Fryer with Vacuum Oil Filter

A PLC-controlled double-mesh continuous fryer paired with online residue screening, vacuum filtration, oil storage and circulation.

Learn More

Vibrating Deoiling Machine

A continuous vibrating conveyor that drains excess surface oil from fragile fried products with minimal handling damage.

Learn More

Continuous Cooling Conveyor

A continuous ambient-air cooling conveyor that lowers and stabilizes product temperature before weighing, inspection or packing.

Learn More

RELATED PROJECTS

Projects Using This Process

Review available project records connected to this solution. Each capacity and configuration applies to that specific delivery.

ArmeniaFried Eggplant Slices

Armenia Continuous Eggplant Frying Line Project

An order-confirmed 6-meter continuous frying line for an Armenian fried eggplant producer; production was still pending when the source record was published.

View Project

KEY FRYING PARAMETERS

Reference Parameters for Vegetables and Plant-Based Foods

Final working values are tuned during project design and commissioning according to your raw material and target product.

Capacity	Typical range: 300-1000 kg/h
final output is product-specific
Typical Frying Reference	Reference automatic-line range: 160-200 C
final settings depend on the vegetable and recipe
Process Scope	Preparation, feeding, frying, de-oiling, cooling, inspection, seasoning and packing
Material	SUS304 food-contact construction
Control	PLC touchscreen with adjustable belt speed and optional multi-zone heating
Selection Inputs	Moisture, cut size, coating, fragility, residence time and target texture
Heating Method	Electric, gas or diesel, selected for product and plant utilities

FAQ

Vegetables and Plant-Based Foods Frying Solution FAQ

Answers to common questions about process configuration, capacity and operation.

Typical applications include tempura vegetables, okra, mushrooms, eggplant, carrot, lotus root, sweet potato and selected plant-based foods.

The typical automatic-line range is 300-1000 kg/h. Actual vegetable output is product- and recipe-specific.

No. Preparation stages are selected from the vegetable, cut shape, target texture and finished-product specification.

Yes. Screening, holding and online filtration can be integrated after the expected crumb and coating load is reviewed.

Vacuum frying may be more suitable for heat-sensitive fruit or vegetable chips requiring lower-temperature dehydration.

PROJECT ENQUIRY

Plan Your Frying Line

Share your raw material, target output, available space and utilities. Our engineers will configure the process and equipment for your project.

Selected solution Industrial Vegetable Frying Solution

Recommended equipment or line configuration
Capacity, utility and layout recommendations
Quotation basis and next steps
